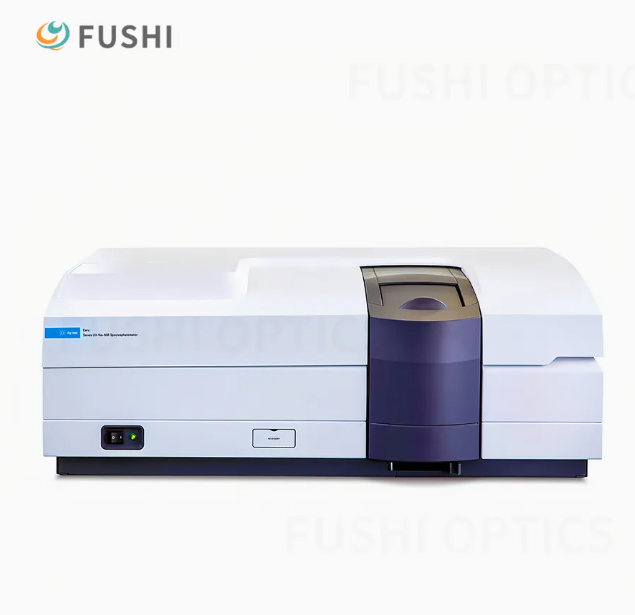

The Cary 60 UV-Vis spectrophotometer has a wavelength range of 190 – 1100 nm and can scan in 3 seconds. Our flexible UV-VIS spectrophotometer can be equipped with a long optical path cube-holder and solid sample transmission or reflection attachment and is ideal for remote UV-VIS absorbance analysis when equipped with a fiber optic probe.
Xenon lamps have a 10-year replacement warranty (for Cary 60 instruments purchased from Agilent or partners), do not require preheating, and do not cause photo-degradation of the sample. Fast response, 80 data points per second. Cary 60 is ideal for a regular UV-VIS spectrophotometer or teaching laboratory use. Optional tools are provided.
| Model | Cary 60 |
| Z-axis height | 20 mm |
| Photometric system | Double beam |
| Light source | Xenon flash lamp (80 Hz) with 10-year warranty on new instruments |
| Spectral bandwidth | UV-Vis 1.5 nm |
| Compliance software | Cary WinUV Pharma |
| Width | 477 mm |
| Control software | Cary WinUV for UV-Vis Applications |
| Maximum scanning speed | 24000 nm/min |
| Wavelength | 190 – 1100 nm |
| Depth | 567 mm |
| Power requirements | 100-240 VAC,50/60 Hz |
| Weight | 18 kg |
| Height | 196 mm |
Working Principle:
– Xenon lamp advantage
– reliable and flexible
– resists chamber light interference
– Environmental impact
