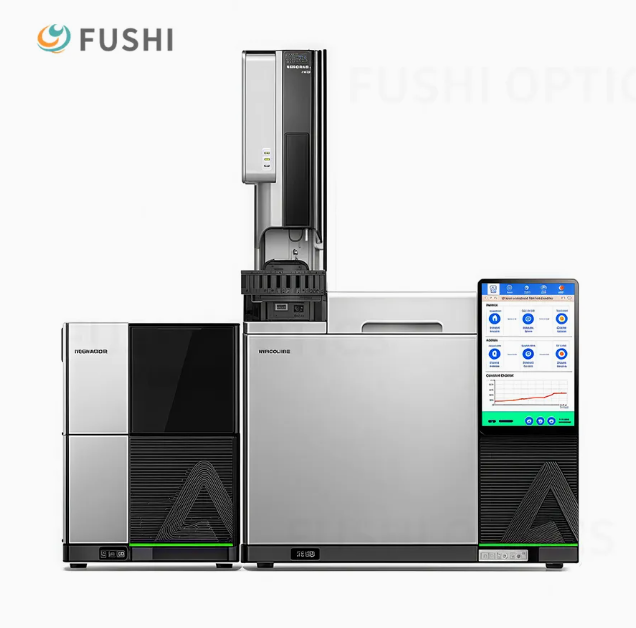

Quadrupole Mass Analyzer
1. 10.1-inch HD capacitive touchscreen with interactive graphical control interface for intuitive operation and excellent visualization (provide proof of screen specifications).
2. Dual-core main control board design (quad-core main processor + dual-core co-processor) enabling smart connectivity and self-diagnostic functions (provide proof of mainboard specifications).
3. Self-tuning PID algorithm ensures precise and stable control of temperature, flow rate, and pressure (provide proof of screen interface).
4. Browser-based user interface for remote control via smartphones, tablets, or computers.
|
GC Injection Port
|
|
|
Injection port
|
Split/Splitless
|
|
Maximum operating temperature
|
450°C
|
|
Control precision
|
0.001 psi
|
|
Control range
|
0–100 psi
|
|
Maximum split ratio
|
12,500:1
|
|
Optional carrier gases
|
N2, H2, He, Ar
|
|
Flow rate range (with N2 as carrier gas)
|
0–500 mL/min
|
|
Quadrupole Mass Filter
|
|
|
Mass range
|
0.5amu-1250 amu
|
|
Mass stability
|
< 0.10 amu/48 hrs
|
|
Acquisition mode
|
scan,SIM,scan and SIM
|
|
Ion Detector
|
|
|
Maximum scan speed
|
20000amu/ s
|
|
Dynamic range
|
106
|
|
Fore pump pumping speed
|
≥4m³/h
|
|
Turbo molecular pump pumping speed
|
≥250L/s
|
