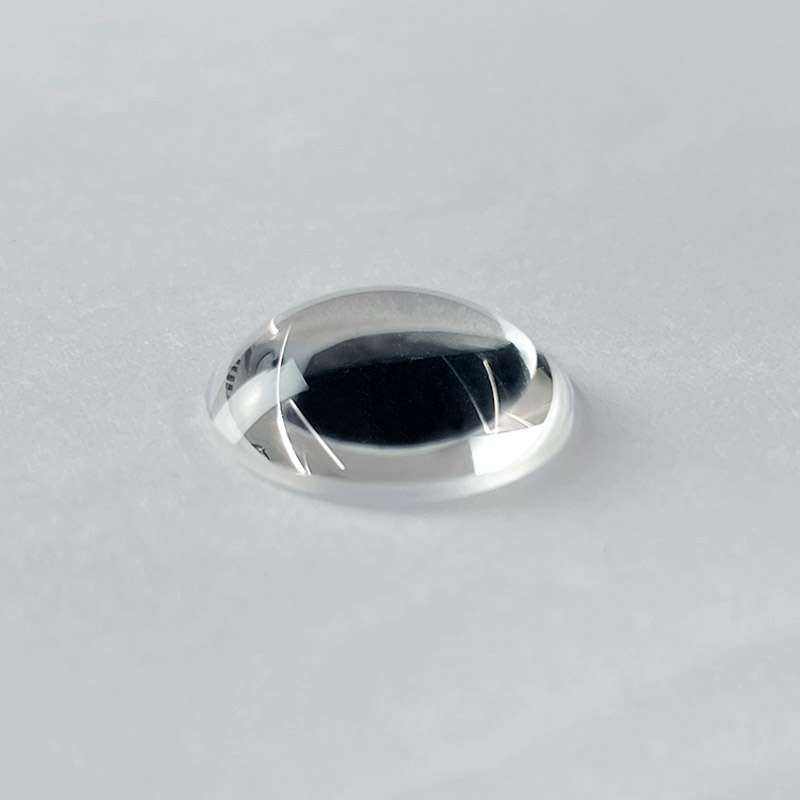

Aspheric lenses designed to suppress spherical aberration, coma, and astigmatism; extensively used in laser systems, imaging, and optical communications. A comprehensive product portfolio—spanning standard to ultra-high-precision grades—is complemented by tailored engineering solutions.
Product Overview
An aspheric lens is a high-performance optical component whose uniquely engineered surface profile overcomes the inherent limitations of conventional spherical optics. Unlike traditional spherical lenses—whose curvature remains constant across the aperture—an aspheric lens features a continuously varying radius of curvature, enabling light rays from the center to the periphery to converge precisely onto a single focal point. This fundamental design advantage effectively eliminates spherical aberration and coma at their source. Thanks to their superior optical performance and compact, streamlined form factor, aspheric lenses have become indispensable core components across demanding applications—including laser material processing, machine vision, medical instrumentation, and consumer electronics.
| Parameter | Standard Specification | High-Precision Specification | Custom Specification |
| Diameter Range | 5 – 100 mm | 3 – 150 mm | 1 – 300 mm |
| Effective Focal Length Range | ±5mm 至 ±500mm | ±2mm 至 ±1000mm | Fully customizable across entire range |
| Diameter Tolerance | ±0.050 mm | +0.000/-0.010 mm | ±0.002 mm |
| Center Thickness Tolerance | ±0.050 mm | ±0.020 mm | ±0.005 mm |
| Aspheric Surface Accuracy (RMS) | < 0.5 μm | < 0.1 μm | < 0.025 μm |
| Aspheric Surface Accuracy (PV) | < 1.5 μm | < 0.3 μm | < 0.08 μm |
| Surface Quality (Scratch–Dig) | 40-20 | 20-10 | 10-5 of diameter |
| Radius of Curvature Tolerance | ±0.5% | ±0.2% | ±0.1% |
| Centration Error | < 3 arcmin | < 1 arcmin | < 30 arcsec |
| Clear Aperture | > 90% of diameter | > 95% of diameter | > 98% of diameter |
| Clear Aperture | Protective chamfer | Precision chamfer | Custom chamfer or no chamfer |
