30% efficiency P-type high-purity germanium γ spectrometer
Desktop Multi-Channel Analyzer (MCA);
— Digital spectrometer
Ø Based on advanced digital signal processing technology, full-featured all-in-one multi-channel analyzer
Ø Support for sample change device (new function compared to DSA-1000)
Ø Support S502C or S500C V3.3 version as the latest version (DSA-1000 supports V2.0)
Ø Includes high-voltage and multi-channel analyzers
Ø Serial communication with the computer (USB or RS-232C), software to set parameters, control spectrum acquisition and analysis
Ø Suitable for use with a single computer, no need for network use

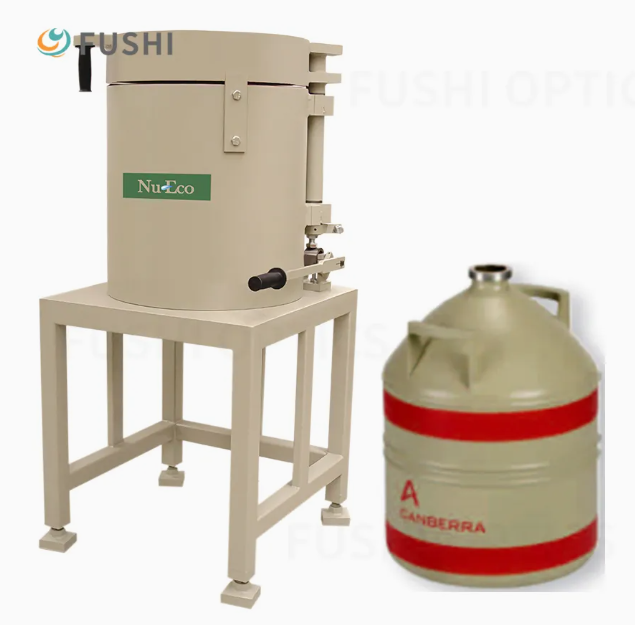

DEWAR (30) LITER
1. 30 liter Dewar liquid nitrogen storage tank
2. Capacity – 30 liters
3. Diameter: 43cm Height: 61.5cm
4. Loss rate: 0.5 liters/day
5. Shipping weight: 11.8kg
Lead Chamber:
1. Shell: low-carbon steel 9.5 mm thick. Body shielding: low background lead 10 cm thick.
2. Liner: 3 mm thick copper.
3. Table leg adjustment range: 0-15 cm. Lever start shutter.
4. Internal layer spraying.
5. Overall casting.
